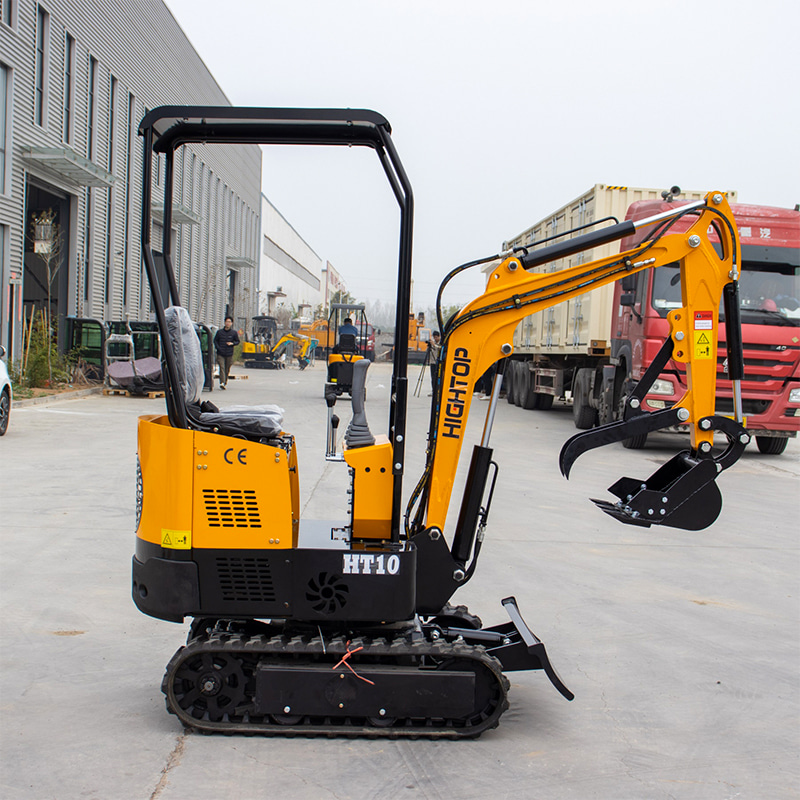

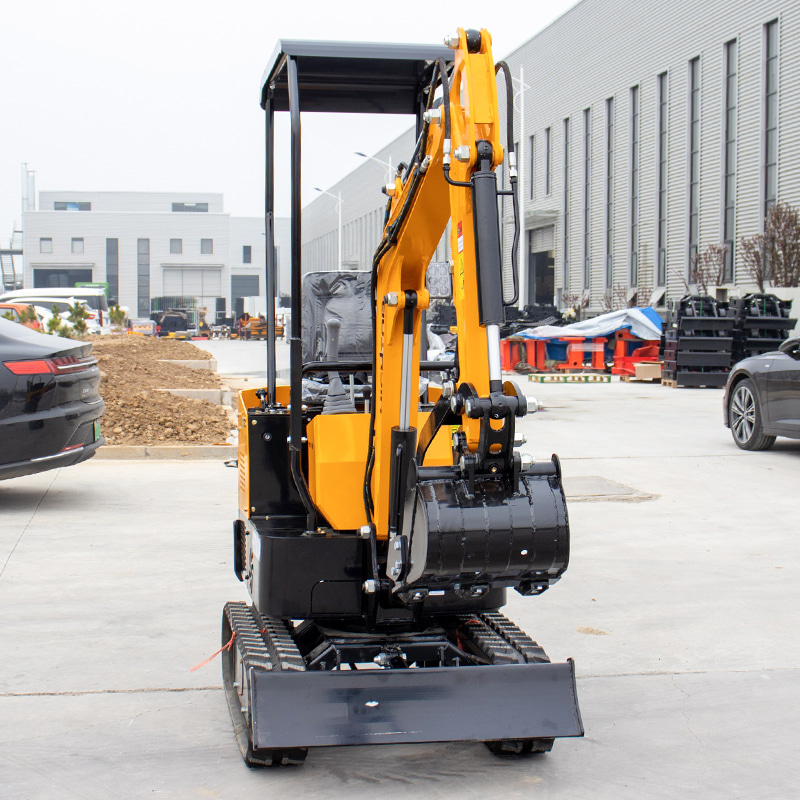

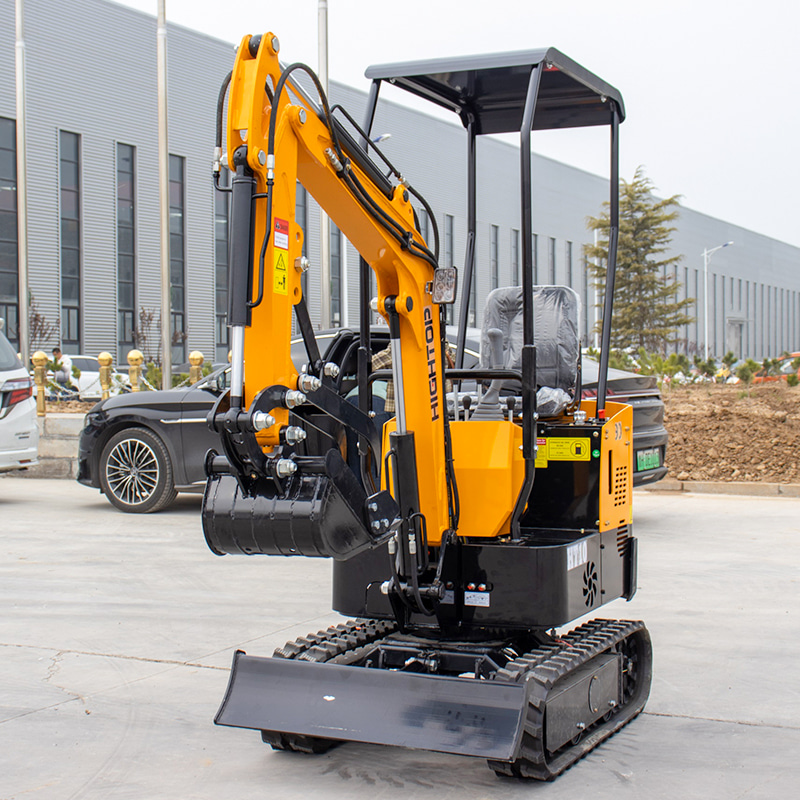

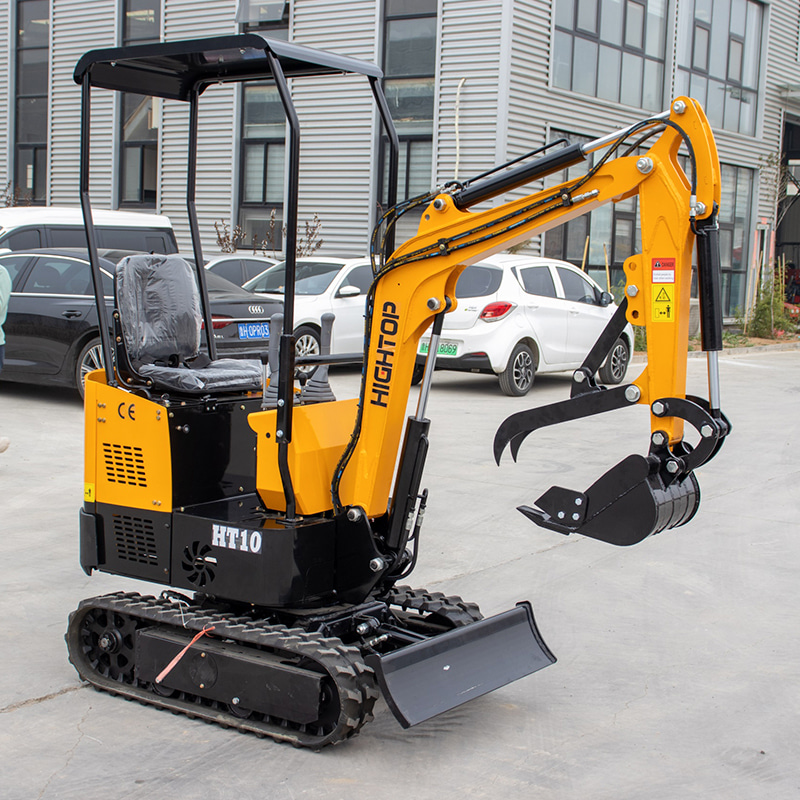

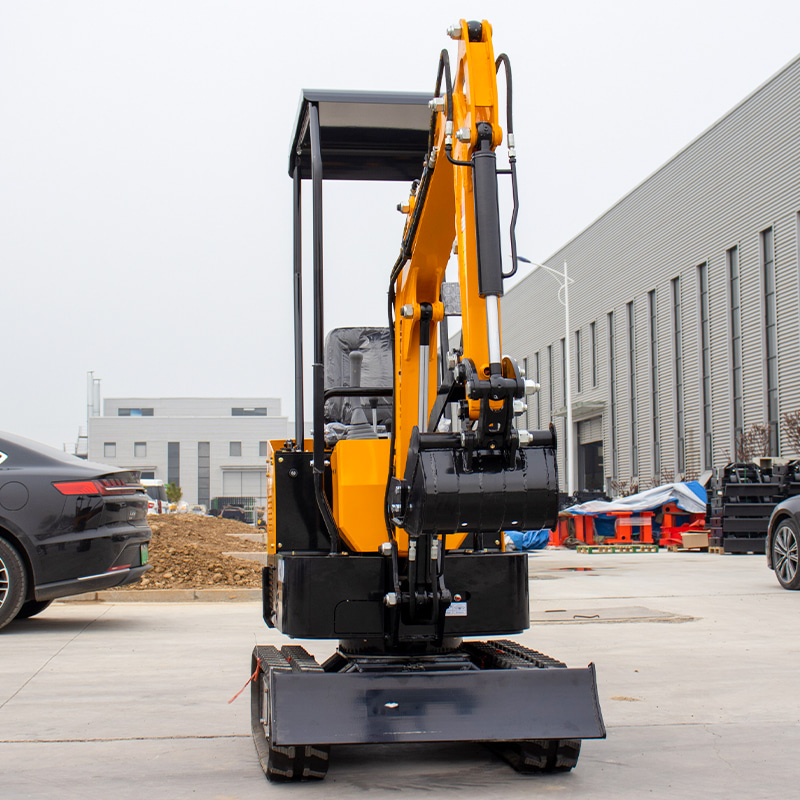

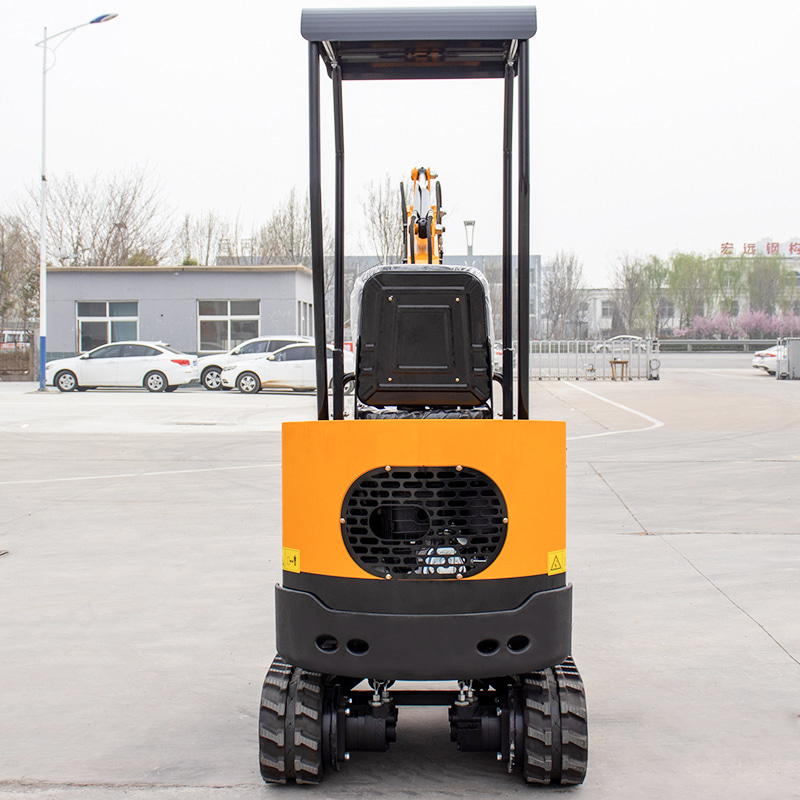

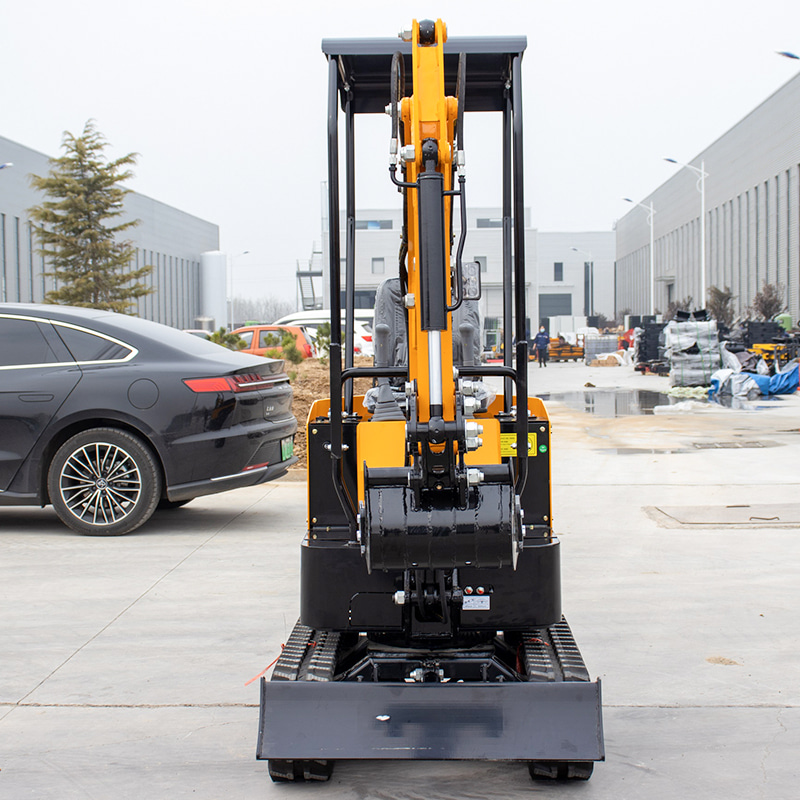

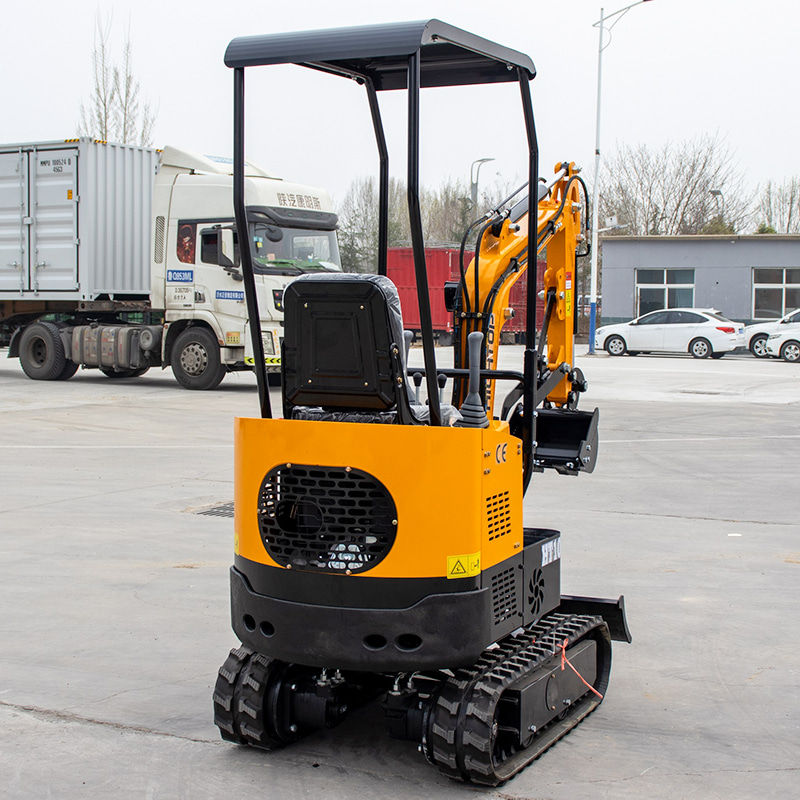

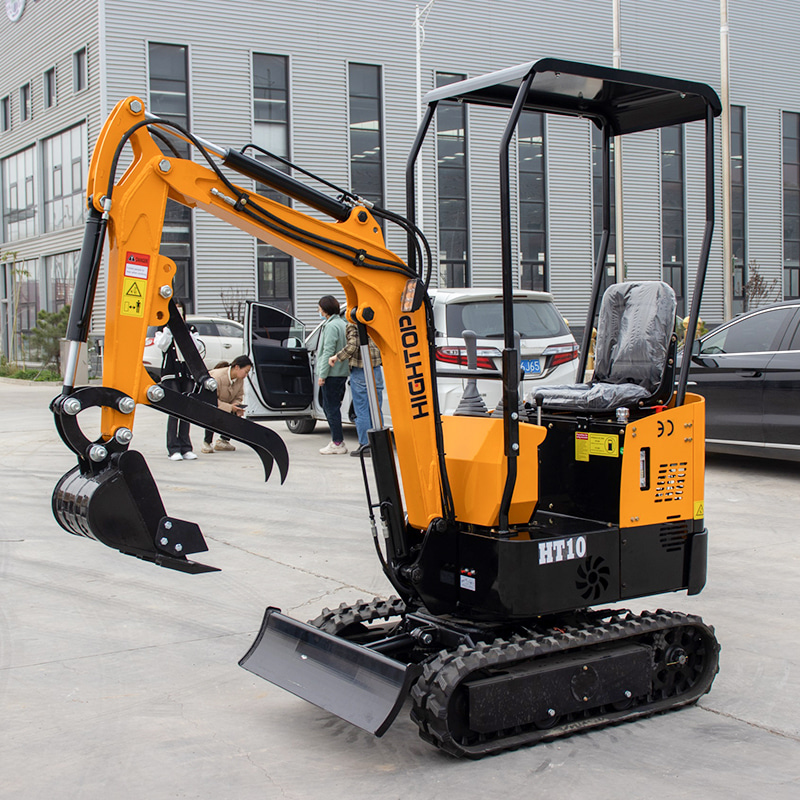

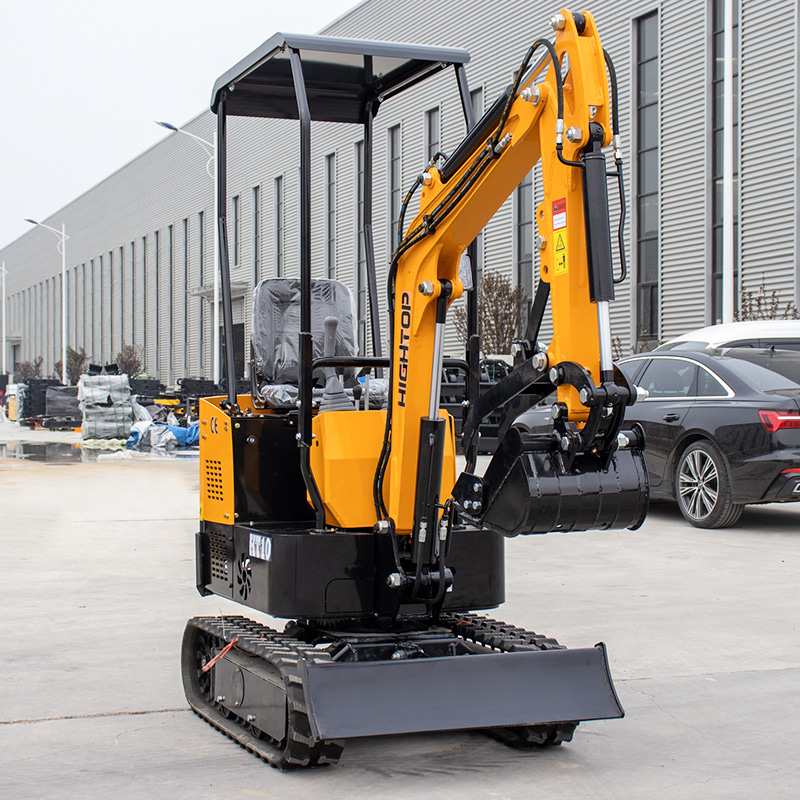

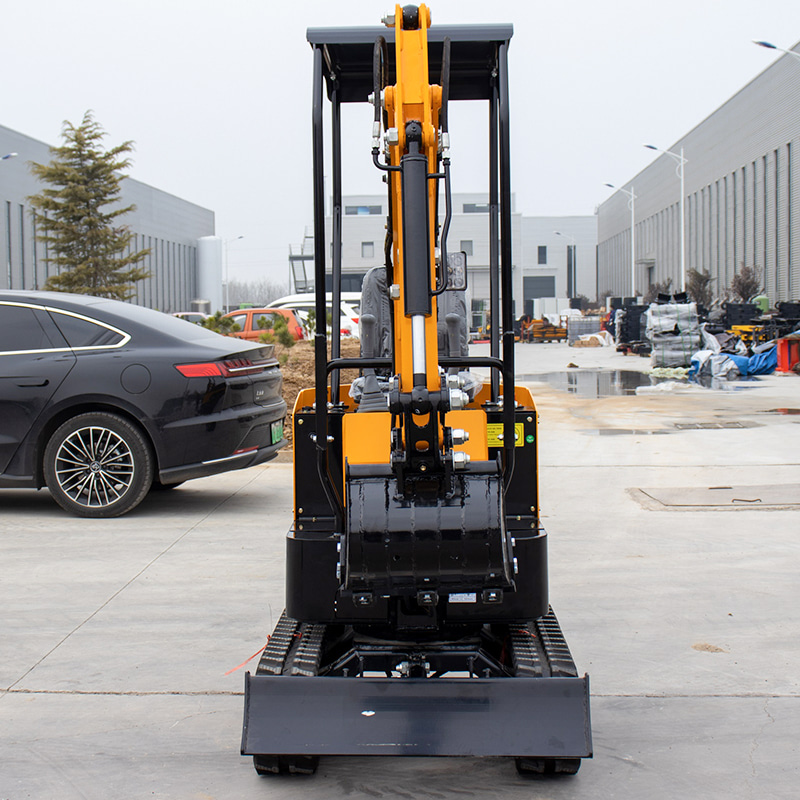

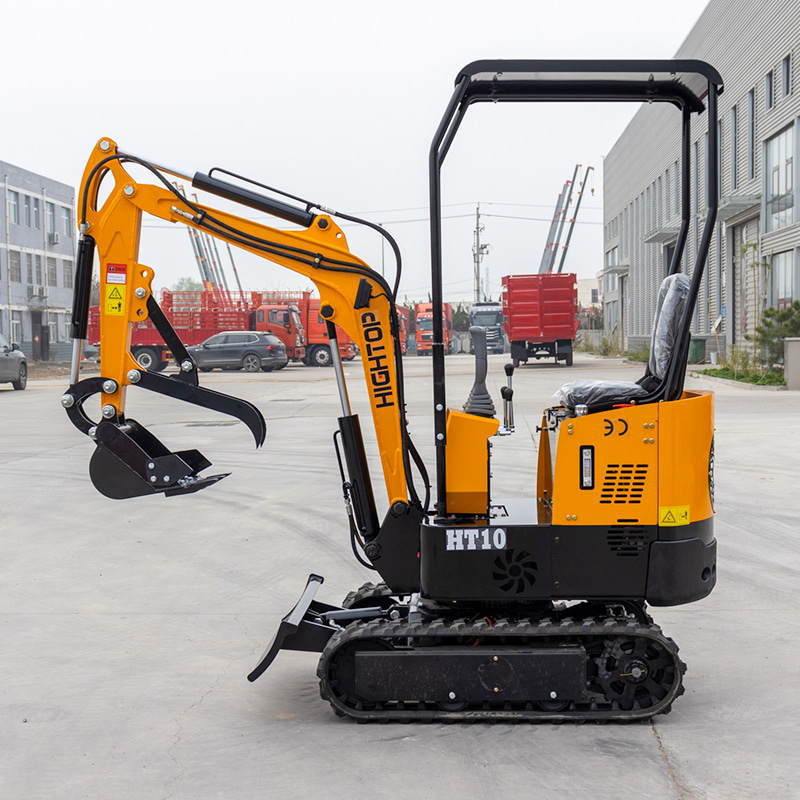

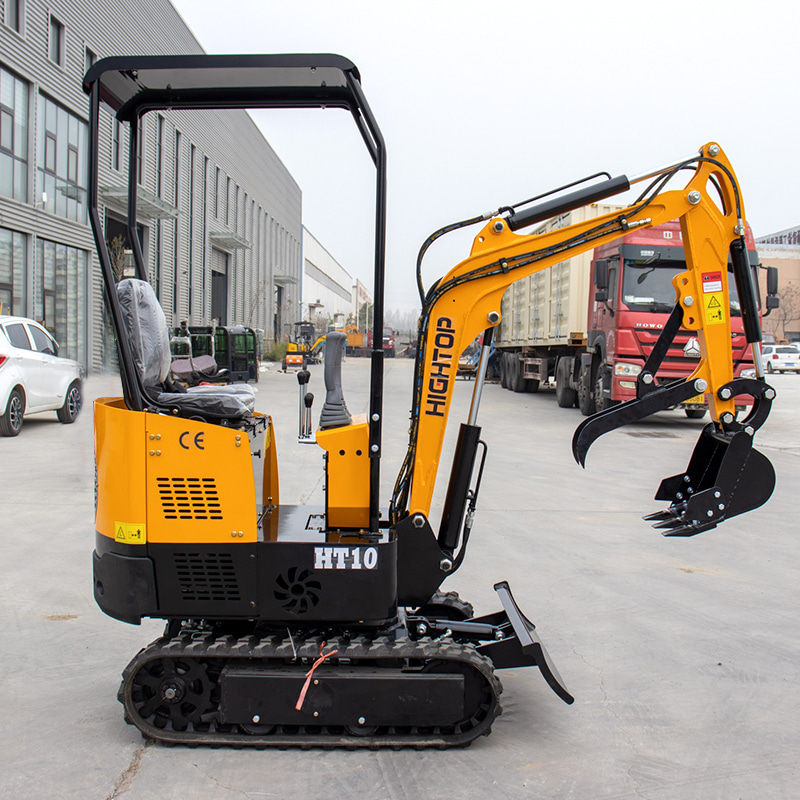

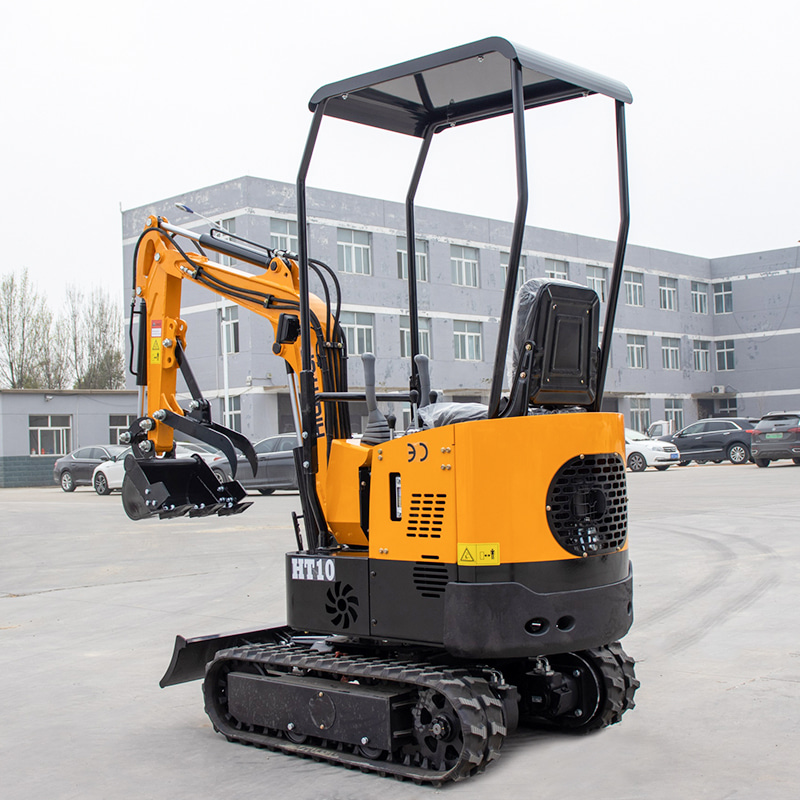

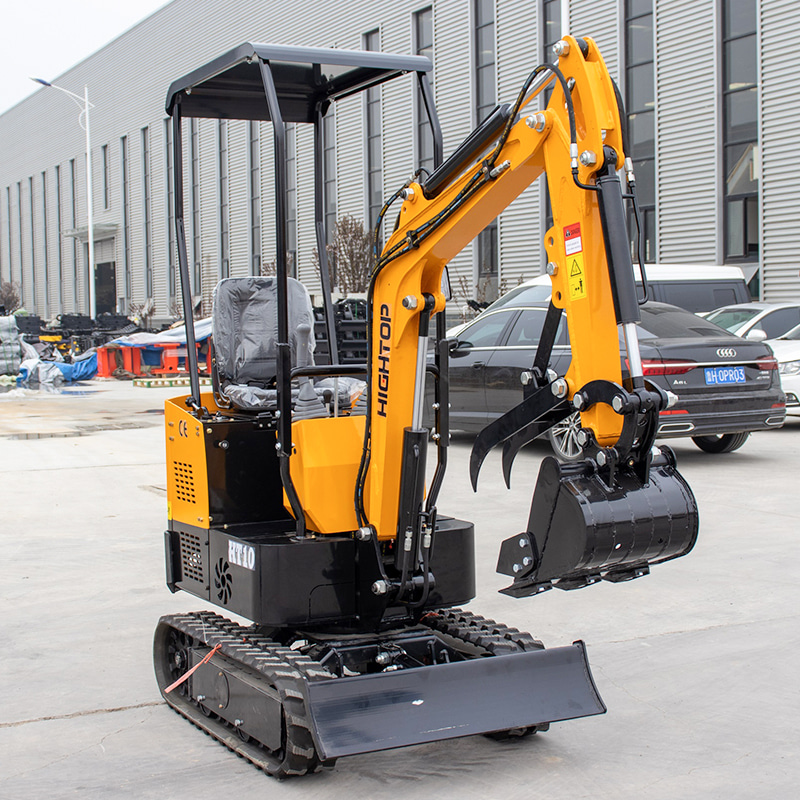

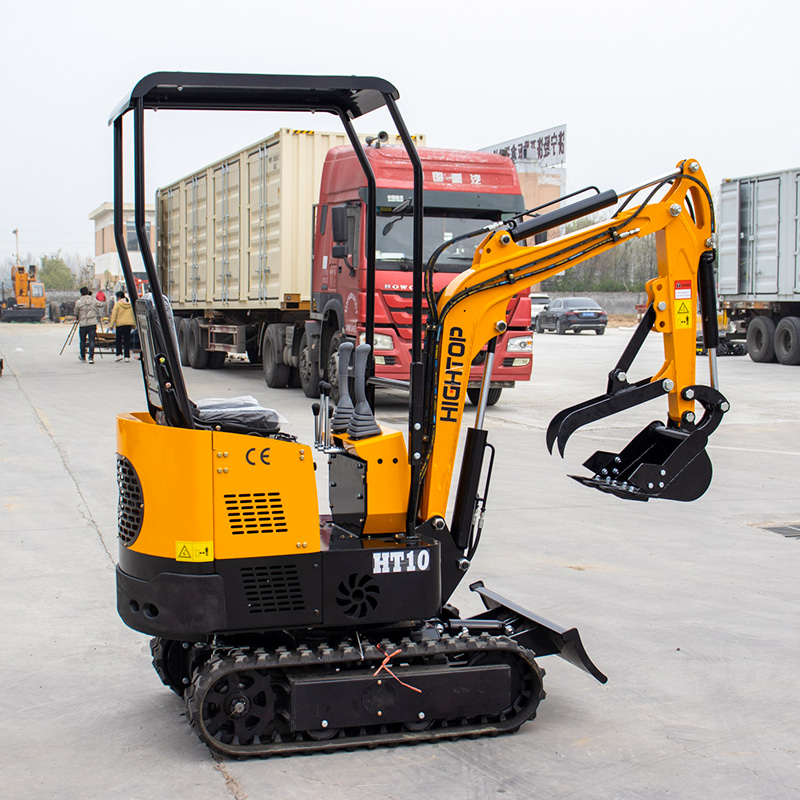

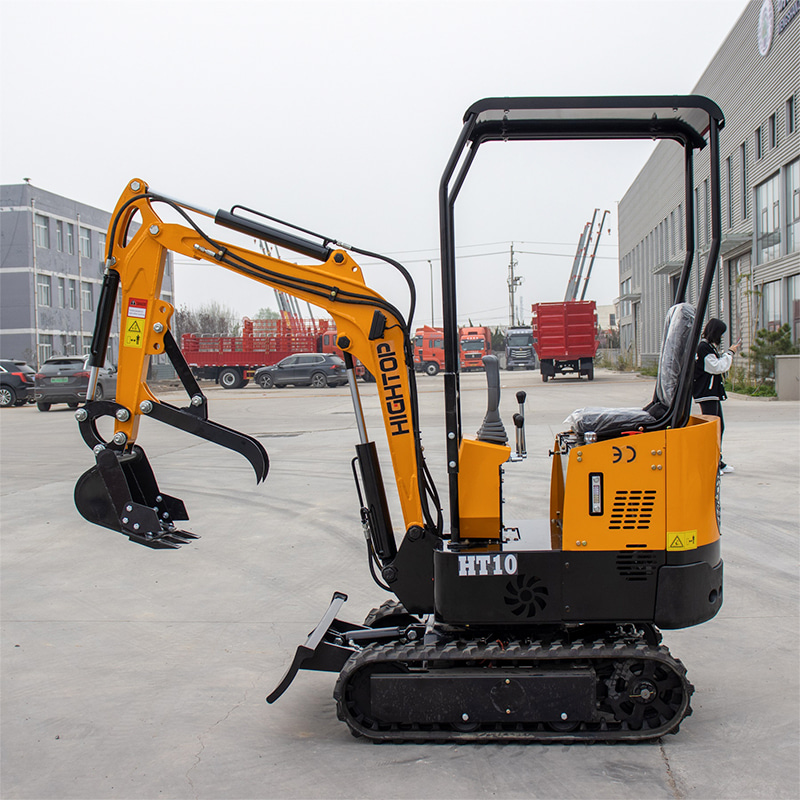

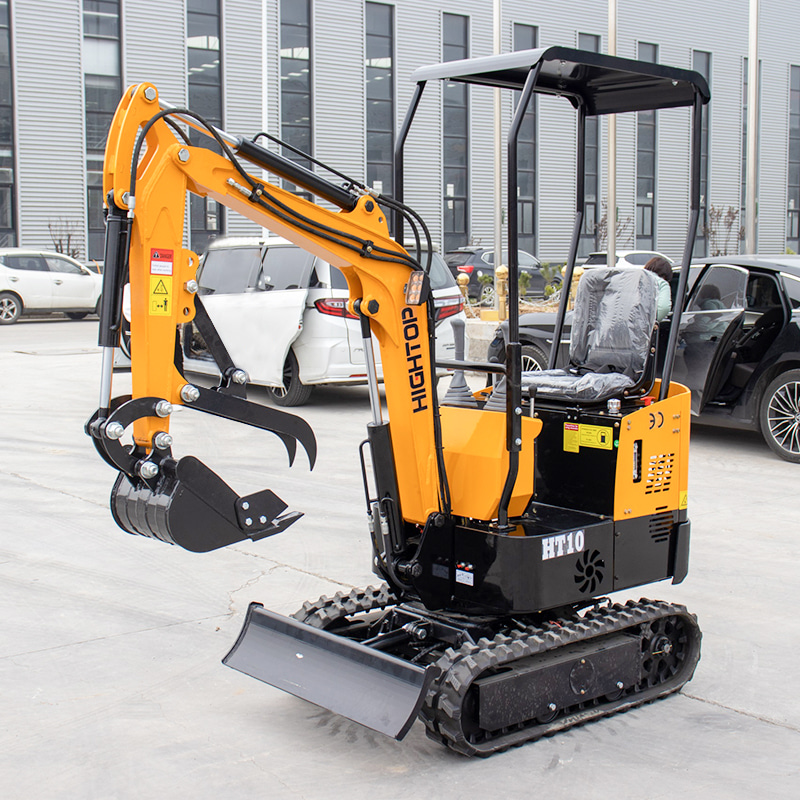

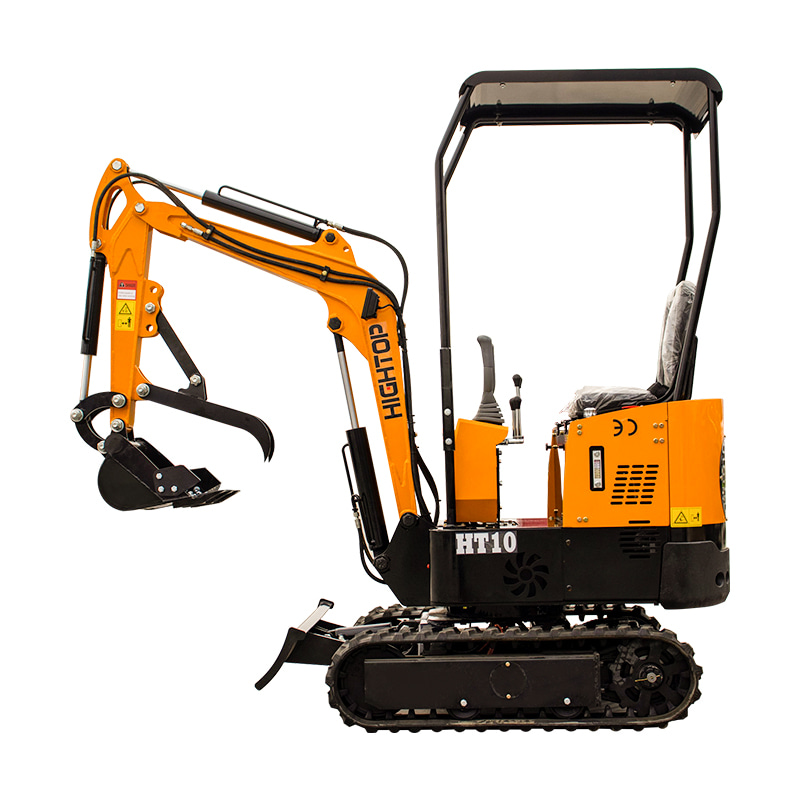

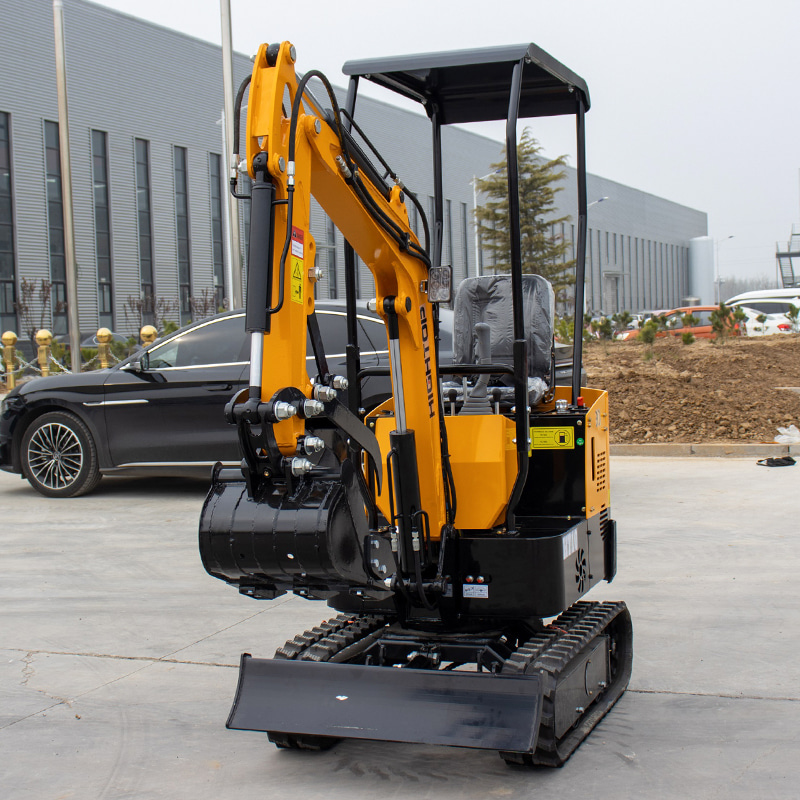

HT10B
|
Weight |
1000kg |
|
Digging bucket capacity |
0.025cbm/120kg |
|
Bucket width |
380mm |
|
Engine KOOP |
192F |
|
Optional Engine |
BRIGGS & STRATTON |
|
Bore stroke |
Single cylinder, fan cool |
|
Rated power |
7kw/3000r/min |
|
Displacement |
6.8ml/r |
|
Travel speed |
1.5km/h |
|
Overall dimension( LxWxH) |
2900 x 930 x 2180 mm |
|
Wheelbase |
910 mm |
|
Total length of track |
1230mm |
|
Platform ground clearance |
380 mm |
|
Platform ground clearance |
380 mm |
|
Platform back-turning radius |
784 mm |
|
Chassis width |
896 mm |
|
Track width |
180 mm |
|
Chassis ground clearance |
132 mm |
|
Track height |
320 mm |
|
Max. Digging depth |
1750 mm |
|
Max. Vertical digging depth |
1550 mm |
|
Max. Digging height |
2610 mm |
|
Max. Dumping height |
1850 mm |
|
Max. Digging radius on the ground |
3050 mm |
|
Min. Rotation radius |
1330 mm |
|
Max. Upgrade the height of the bulldozer blade |
345 mm |
|
Max.Digging depth of bulldozer blade |
255 mm |
| CONFIGURATION | With roof and excavation bucket | |
| Engine | Kepu Euro 5 engine | |
| price in USD | 2400 | |
| Option | cabin+USD500 | |
