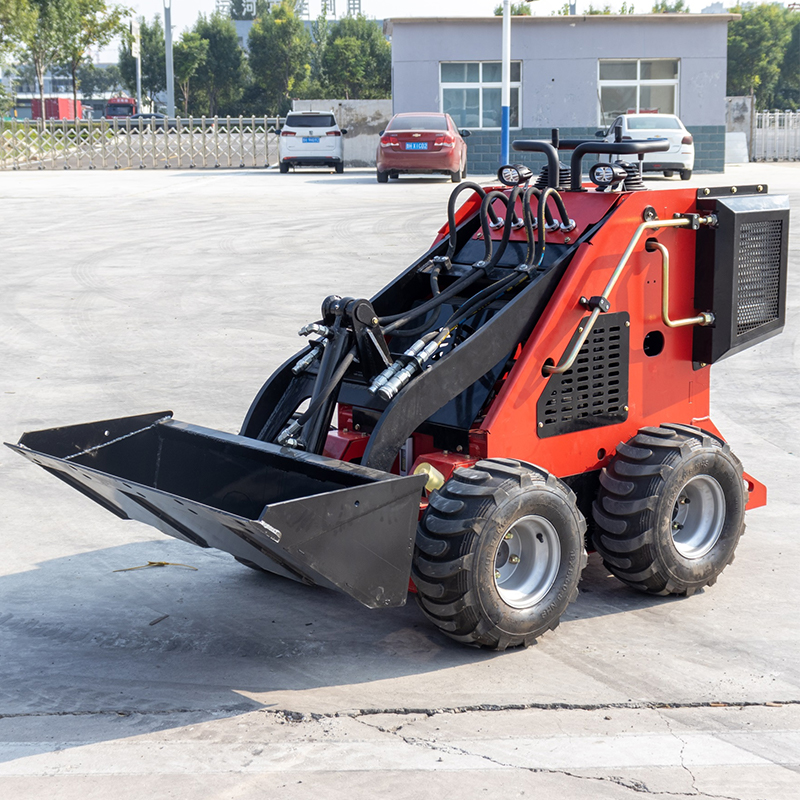

HT320 Excavator

Max working height (H3)

2504 mm

Max pin height (H2)

1951 mm

Max Dumping height (H1)

1423 mm

Max Dumping distance(E)

100 mm

Max Dumping Angle (a3)

53°

Rollback of the bucket on the ground (a2)

32°

Departure angle (a1)

17°

Total height (H)

1210 mm

Ground clearance (F)

133.5 mm

Wheelbase (L1)

653 mm

Overall length without bucket (L3)

1552 mm

Total width (B2)

1050 mm

Bucket width (B1)

1080 mm

Total length with bucket (L)

1992 mm

Turn radius forward turning (R)

1205 mm Engine

Rated Power (KW)

10KW(13.5HP)

Rotating speed (rpm)

3600

Noise

(Db)≤95

Hydraulic System

Pressure (Mpa)

17

Working Time (s)

Raise

4

Dump

1.3

Lower

3.2

Operating Load

260 Kg

Bucket Capacity

0.08 m³

Max Lifting Force

300 Kg

Travel Speed

0-6 Km/h

Operating Weight

640 Kg
